Carli Suspension 23+ Ford F250/350 4X4 Fabricated Radius Arms

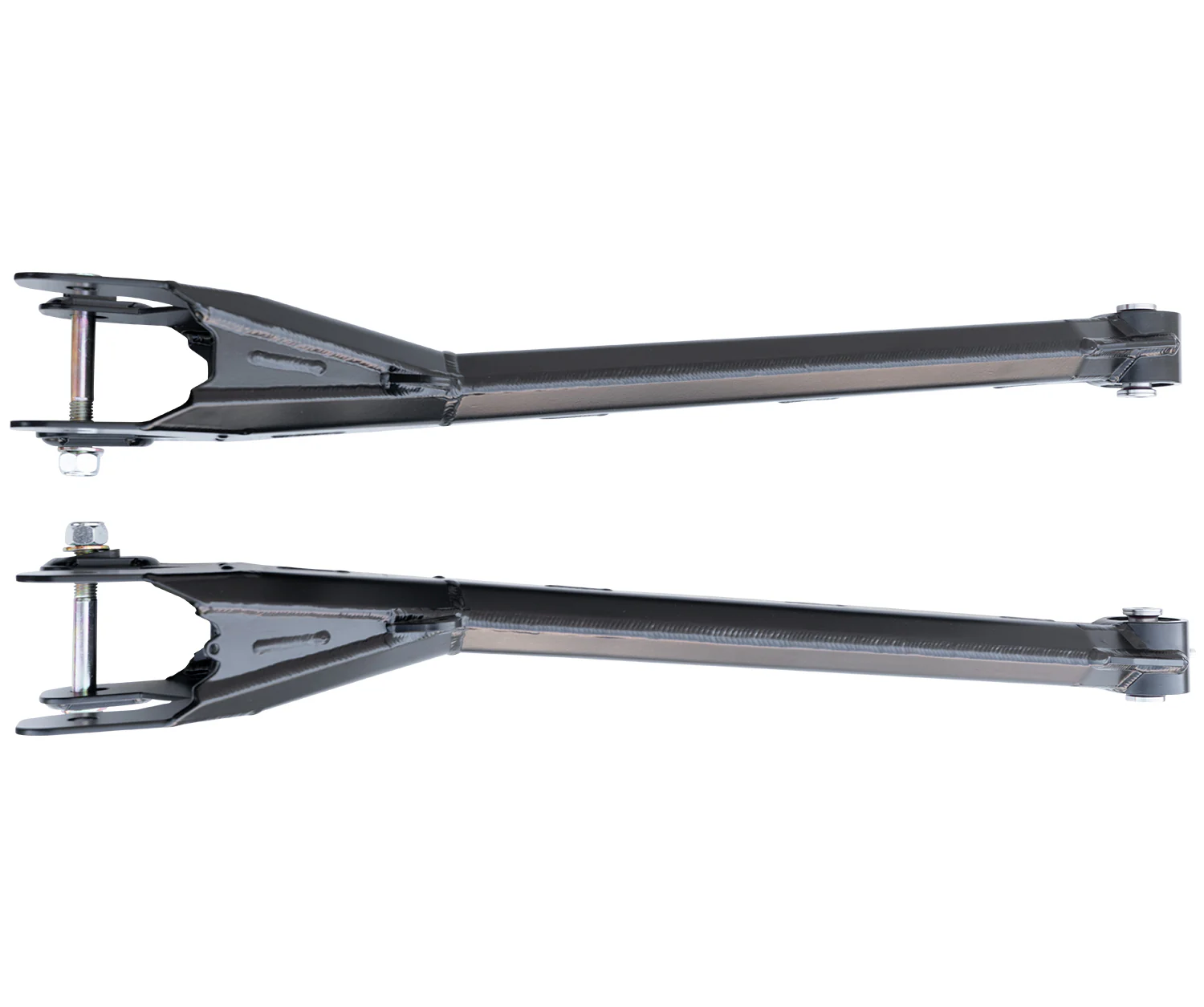

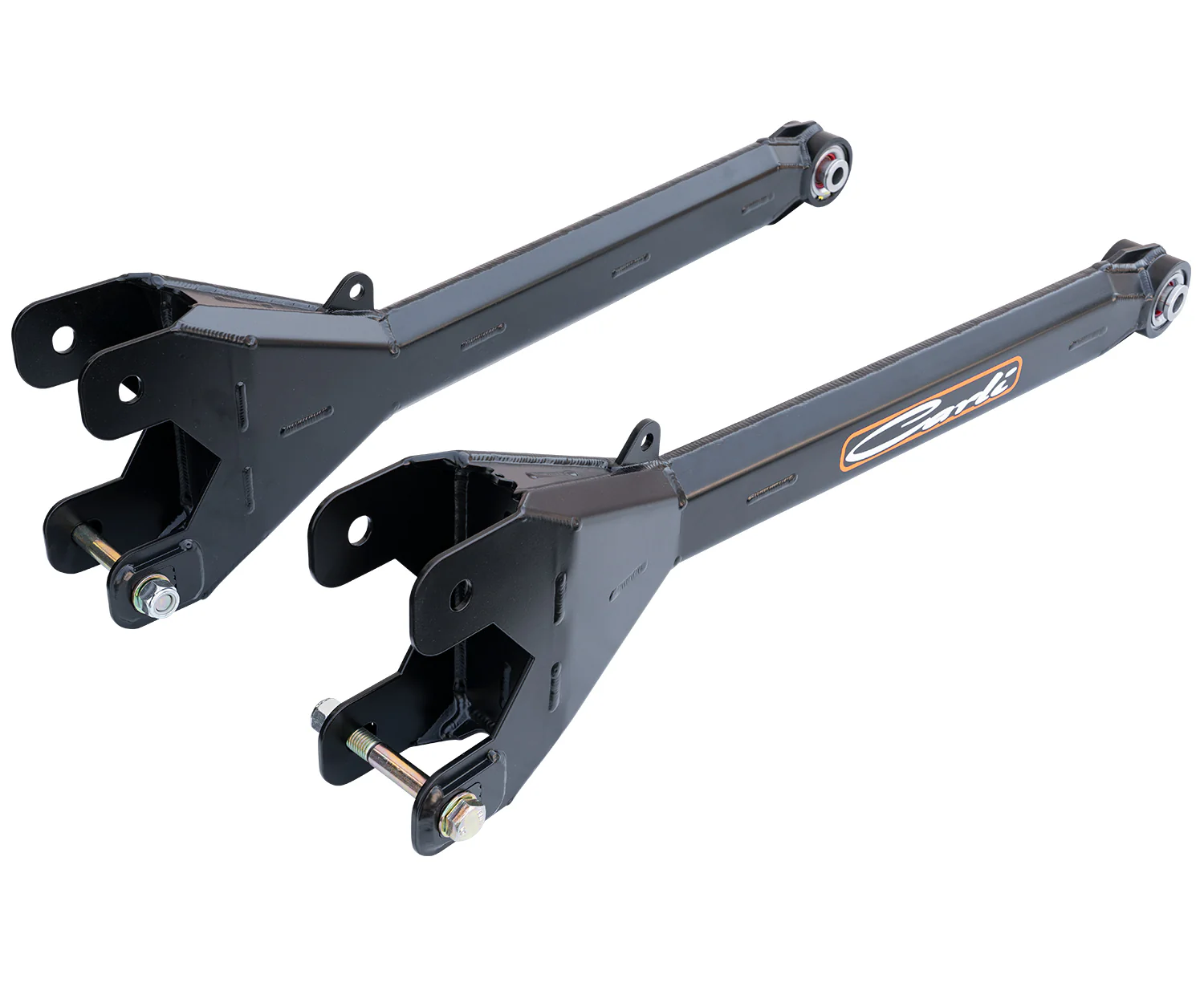

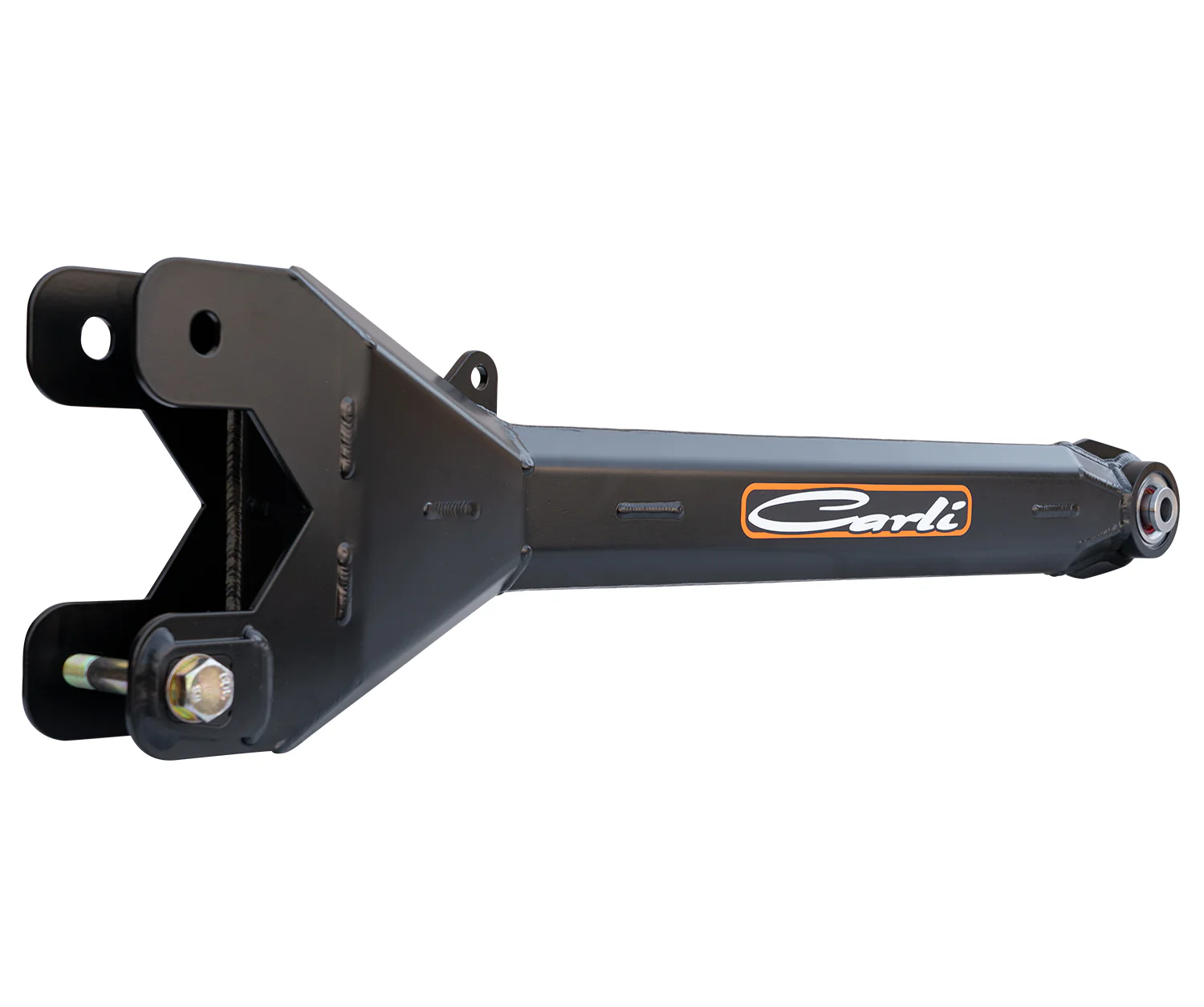

Carli Suspension 2023+ Ford Super Duty radius arms offer additional strength, tire clearance, caster adjustment, and ride quality. These are fully Boxed Construction boasting full-length internal gusseting makes them bulletproof while the 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot. While most brands cut corners with a rubber bushing on the frame side, this Carli made spherical joint results in increase ride quality and articulation over stock.
Please note if your truck is a Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.

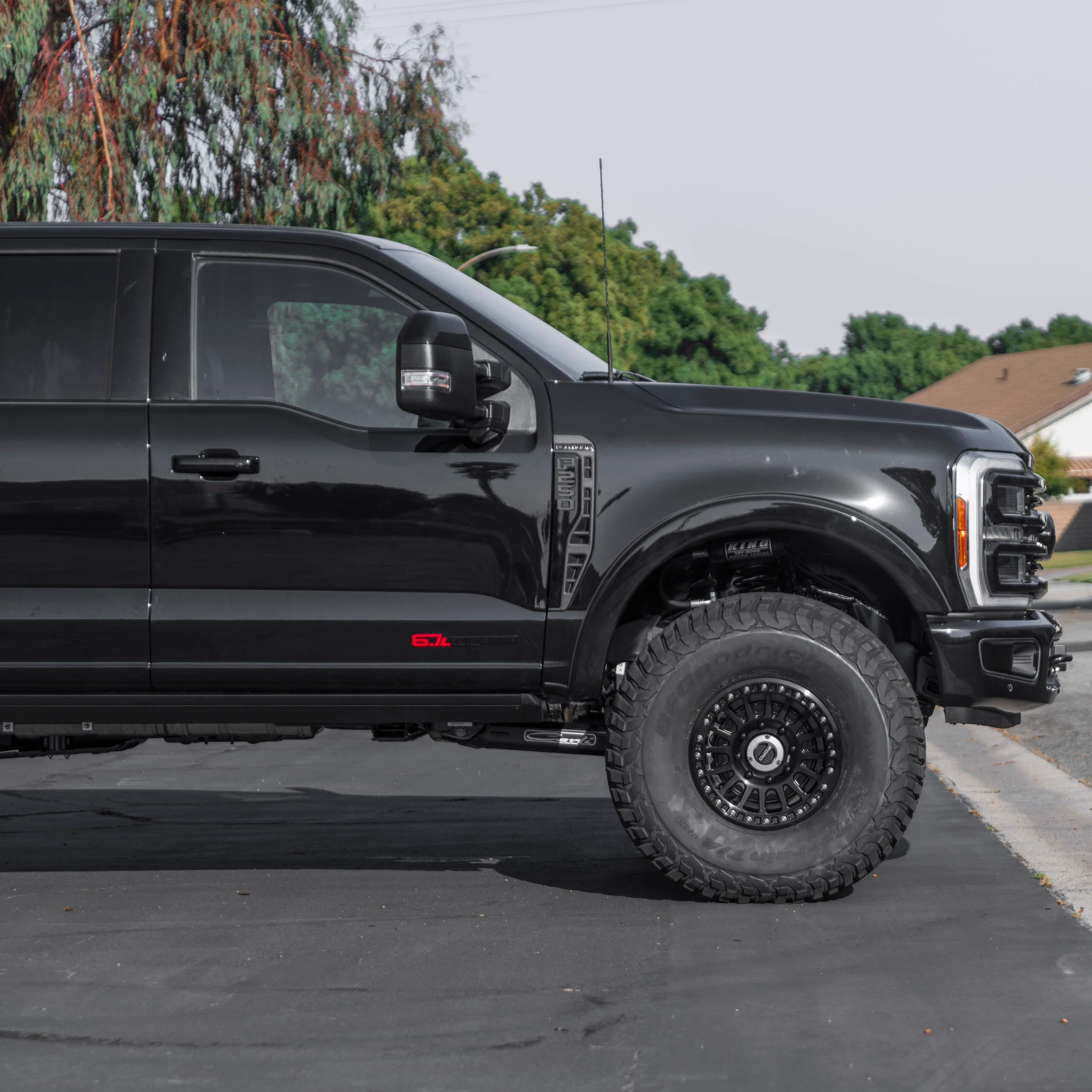

A complete redesign from Carli's 2005-22 arms, these arms offset the to the inside to accommodate the alterations Ford made to the 23+ Super Duty frame. This offset allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Straps prevent the shocks from limiting down travel.
The Carli arms correct 0.5°-2.5° of caster (with the included shims) at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.
SKU: CS-FARA-LVL-23
– 0.5°-2.5° of adjustable Caster correction

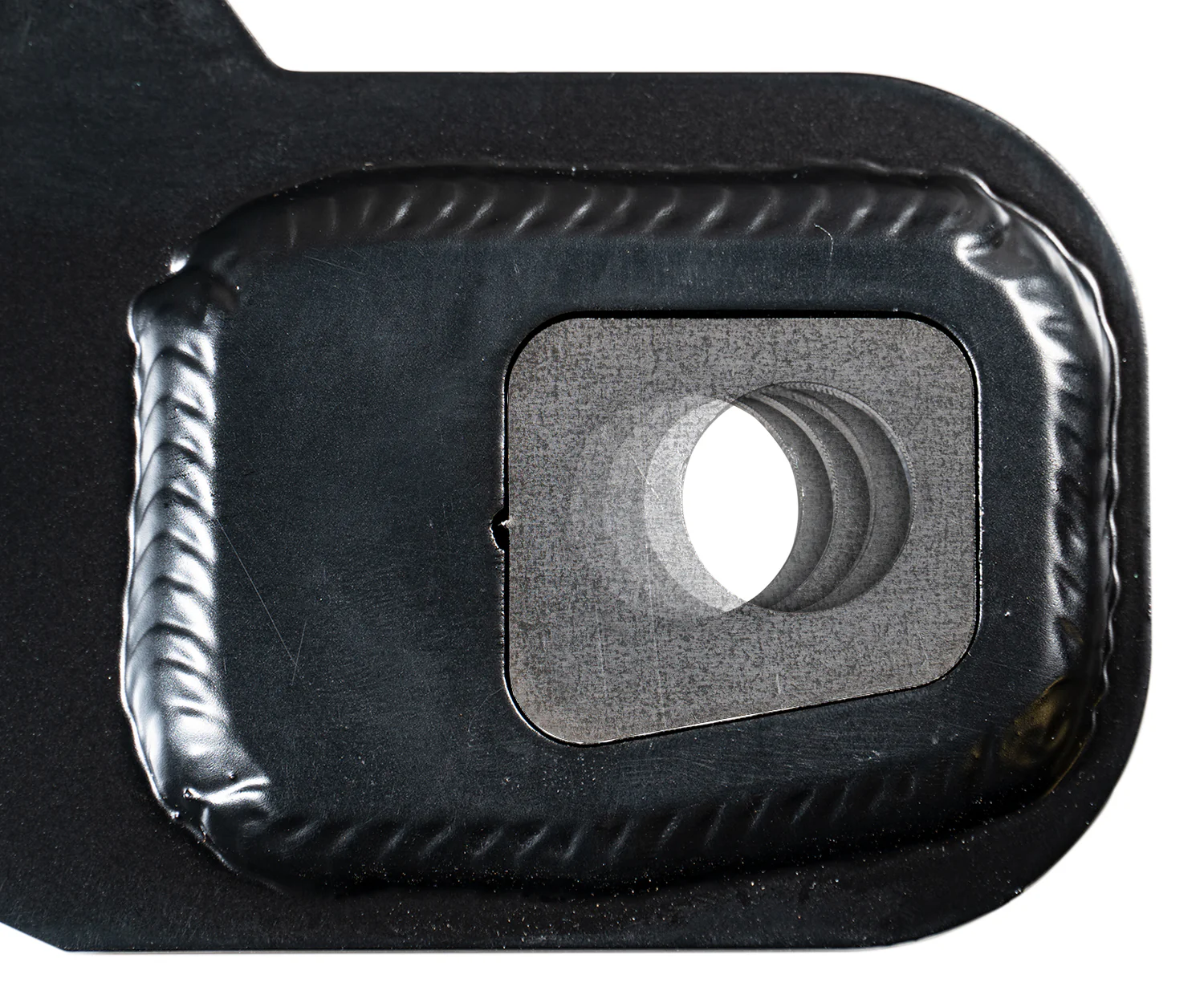

– 3/16 Construction, Full Length Internal Structure

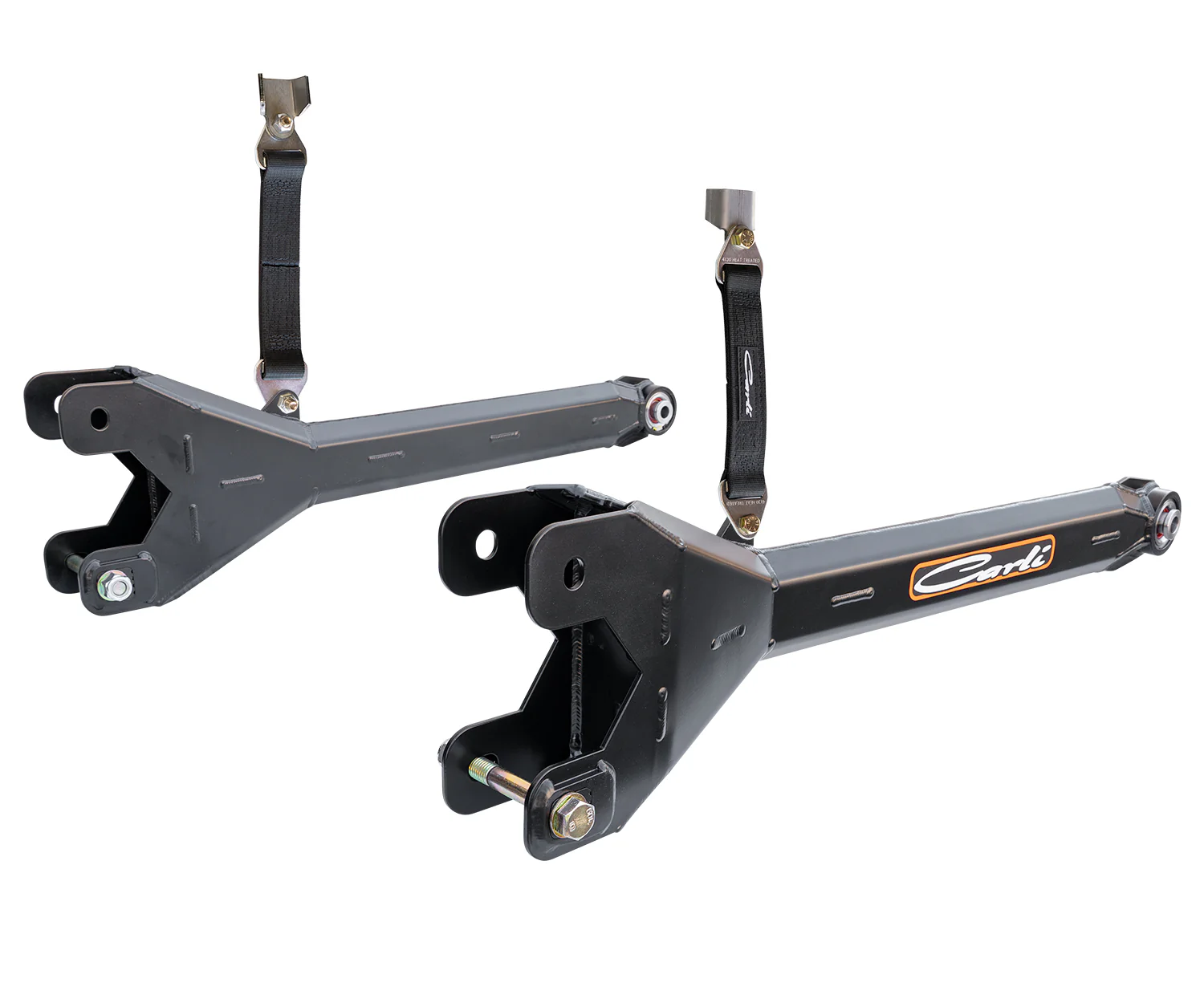

– 12″ Limit Straps Kit Included
– 17-4 Stainless Spherical Joint for longevity and bind free Cycling
– Fitment: 2023+ Ford F250/350 4×4
Original: $1,641.00
-70%$1,641.00
$492.30
Description
Carli Suspension 2023+ Ford Super Duty radius arms offer additional strength, tire clearance, caster adjustment, and ride quality. These are fully Boxed Construction boasting full-length internal gusseting makes them bulletproof while the 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot. While most brands cut corners with a rubber bushing on the frame side, this Carli made spherical joint results in increase ride quality and articulation over stock.
Please note if your truck is a Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.
A complete redesign from Carli's 2005-22 arms, these arms offset the to the inside to accommodate the alterations Ford made to the 23+ Super Duty frame. This offset allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Straps prevent the shocks from limiting down travel.
The Carli arms correct 0.5°-2.5° of caster (with the included shims) at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.
SKU: CS-FARA-LVL-23
– 0.5°-2.5° of adjustable Caster correction
– 3/16 Construction, Full Length Internal Structure
– 12″ Limit Straps Kit Included
– 17-4 Stainless Spherical Joint for longevity and bind free Cycling
– Fitment: 2023+ Ford F250/350 4×4
